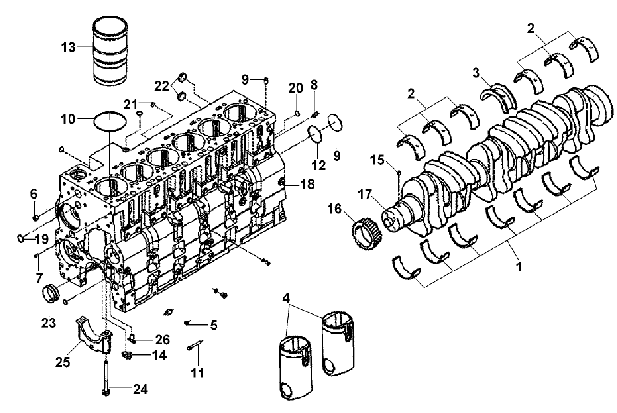

BB9171 Cylinder Body Subassembly
|
BB9171 Cylinder Body Subassembly |
|
 |
|
Mark Number |
Part Number |
Part Name |
Quantity |
Wear Part |
Remarks |
|
1 |
3944153 |
Crank Lower Bush |
7 |
|
|
|
2 |
3944158 |
Crank Upper Bush |
6 |
|
|
|
3 |
3944163 |
Crank Thrust Bush |
1 |
|
|
|
4 |
3965966 |
Tappet Body |
12 |
|
|
|
5 |
4944725 |
Conduit Pipe |
12 |
|
|
|
6 |
C3008468 |
Hexagon Socket Cap Tapered Screw Plug |
1 |
|
|
|
7 |
C3900257 |
Locating Pin |
2 |
|
|
|
8 |
C3901846 |
Locating Pin |
4 |
|
|
|
9 |
C3901969 |
Bowl-shaped Plug |
1 |
|
|
|
10 |
C3907177 |
Rectangular Ring |
6 |
|
|
|
11 |
C3909025 |
Hexagon Flanged Bolt |
6 |
|
|
|
12 |
C3926048 |
O Ring |
1 |
|
|
|
13 |
C3948095 |
Cylinder Jacket |
6 |
|
|
|
14 |
C3959291 |
Piston Cooling Nozzle |
6 |
|
|
|
15 |
C3904483 |
Locating Pin |
1 |
|
|
|
16 |
C3918776 |
Crank Gear |
1 |
|
|
|
17 |
C3965010 |
Crank |
1 |
|
|
|
C3976841 |
Crankshaft Assembly (Including Parts No. 1-17) |
1 |
|
|
|
18 |
C4946152 |
Cylinder Body |
1 |
|
|
|
19 |
C143066 |
Bowl-shaped Plug |
3 |
|
|
|
20 |
C3004258 |
Bowl-shaped Plug |
4 |
|
|
|
21 |
C3900956 |
Bowl-shaped Plug |
3 |
|
|
|
22 |
C3905401 |
Bowl-shaped Plug |
4 |
|
|
|
23 |
C3945329 |
Camshaft Bush |
7 |
|
|
|
24 |
C3970810 |
Main Bearing Cover Bolt |
14 |
|
|
|
25 |
C3970955 |
Main Bearing Cover |
7 |
|
|
|
26 |
CS 923 E |
Water Drain Valve |
1 |
|
|
|
|
