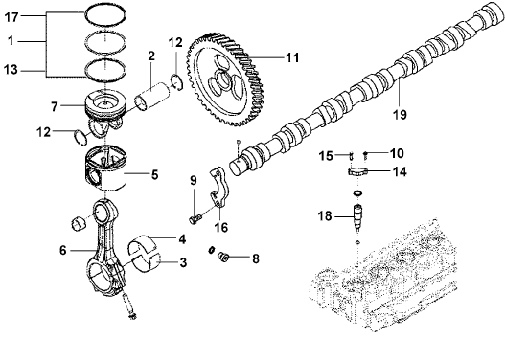

PP40388 Functional Part Subassembly
|
PP40388 Functional Part Subassembly |
|
 |
|
Mark Number |
Part Number |
Part Name |
Quantity |
Wear Part |
Remarks |
|
1 |
3948412 |
Compression Ring |
6 |
|
|
|
2 |
3950549 |
Piston Pin |
6 |
|
|
|
3 |
3950661 |
Connecting Rod Bush |
6 |
|
|
|
4 |
3966244 |
Connecting Rod Bush |
6 |
|
|
|
5 |
3966721 |
Piston Apron |
6 |
|
|
|
6 |
3979744 |
Connecting Rod |
6 |
|
|
|
7 |
4941395 |
Piston Top |
6 |
|
|
|
8 |
C3678923 |
Screw Plug |
1 |
|
|
|
9 |
C3900227 |
Hexagon Bolt |
2 |
|
|
|
10 |
C3902023 |
Hexagon Flanged Bolt |
6 |
|
|
|
11 |
C3918777 |
Camshaft Gear |
1 |
|
|
|
12 |
C3920692 |
Retaining Ring |
12 |
|
|
|
13 |
C3921919 |
Oil Ring |
6 |
|
|
|
14 |
C3940639 |
Fuel Injector Clamping Plate |
6 |
|
|
|
15 |
C3940817 |
Hexagon Flanged Bolt |
6 |
|
|
|
16 |
C3944001 |
Camshaft Thrust Plate |
1 |
|
|
|
17 |
C3964073 |
Compression Ring |
6 |
|
|
|
18 |
C3975929 |
Fuel Injector |
6 |
|
|
|
19 |
C3976620 |
Camshaft |
1 |
|
|
|
|
